Psychetype

Navi60

Navi60

$380.00 AUD
$380.00 AUD
Sale Sold out
Tax included.
Colour
PCB
Plate

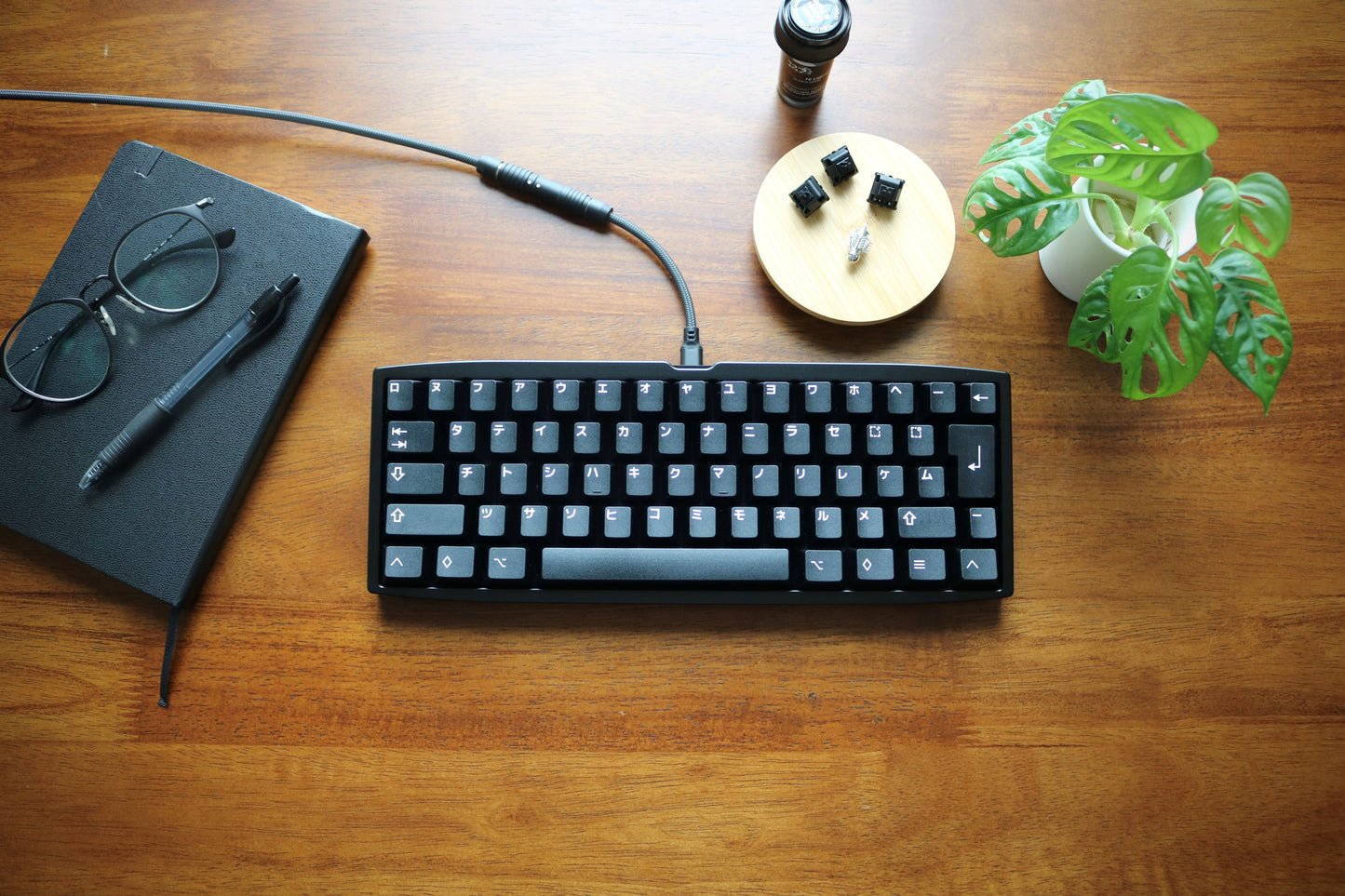

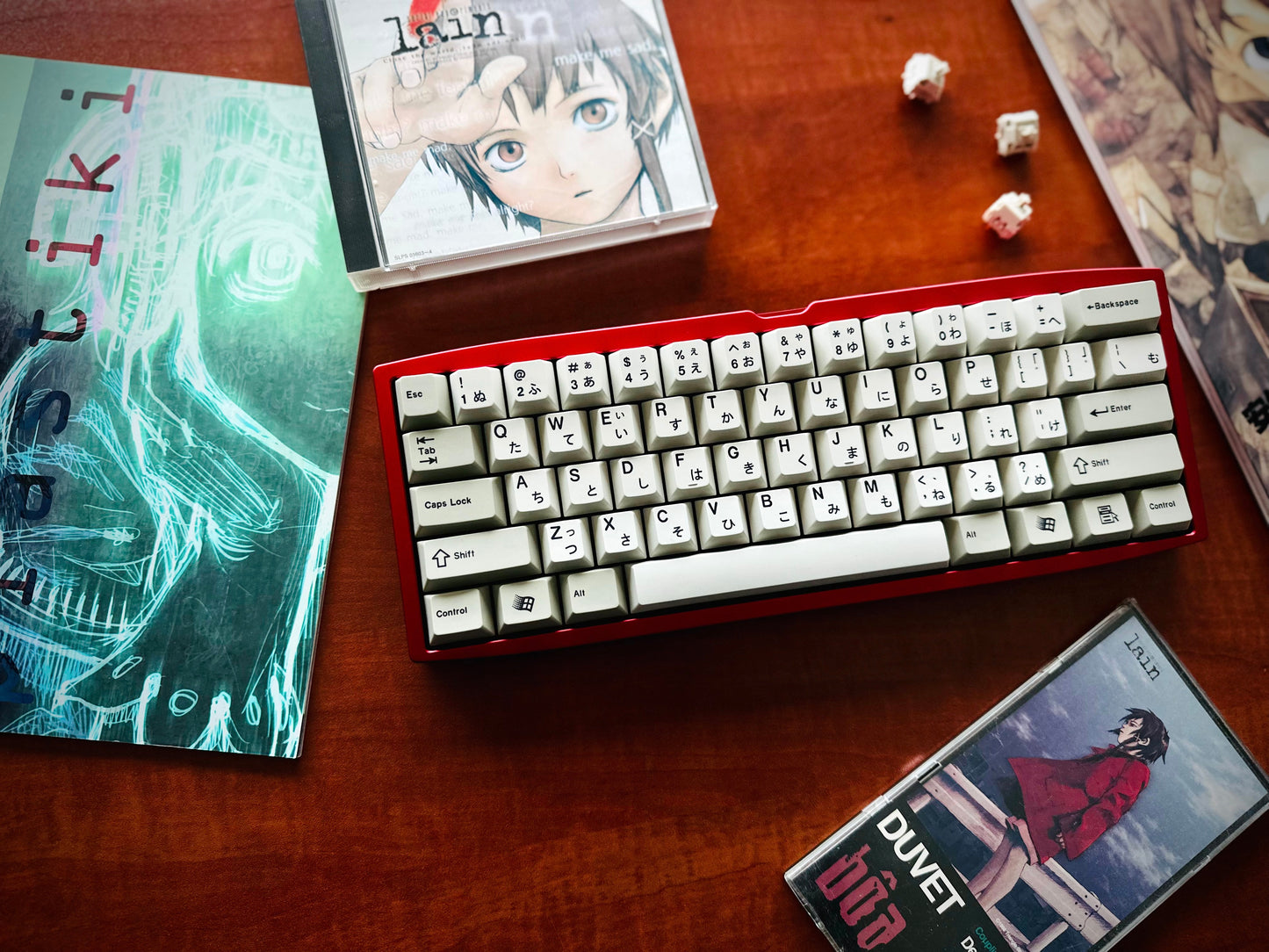

The Navi60 is a 60% top mount/o-ring mount with a full CNC aluminum case and brass weight.

This project is a part of the #lainttl  (time to live) program. We aim to provide a high-quality keyboard for both keyboard and Lain enthusiasts.

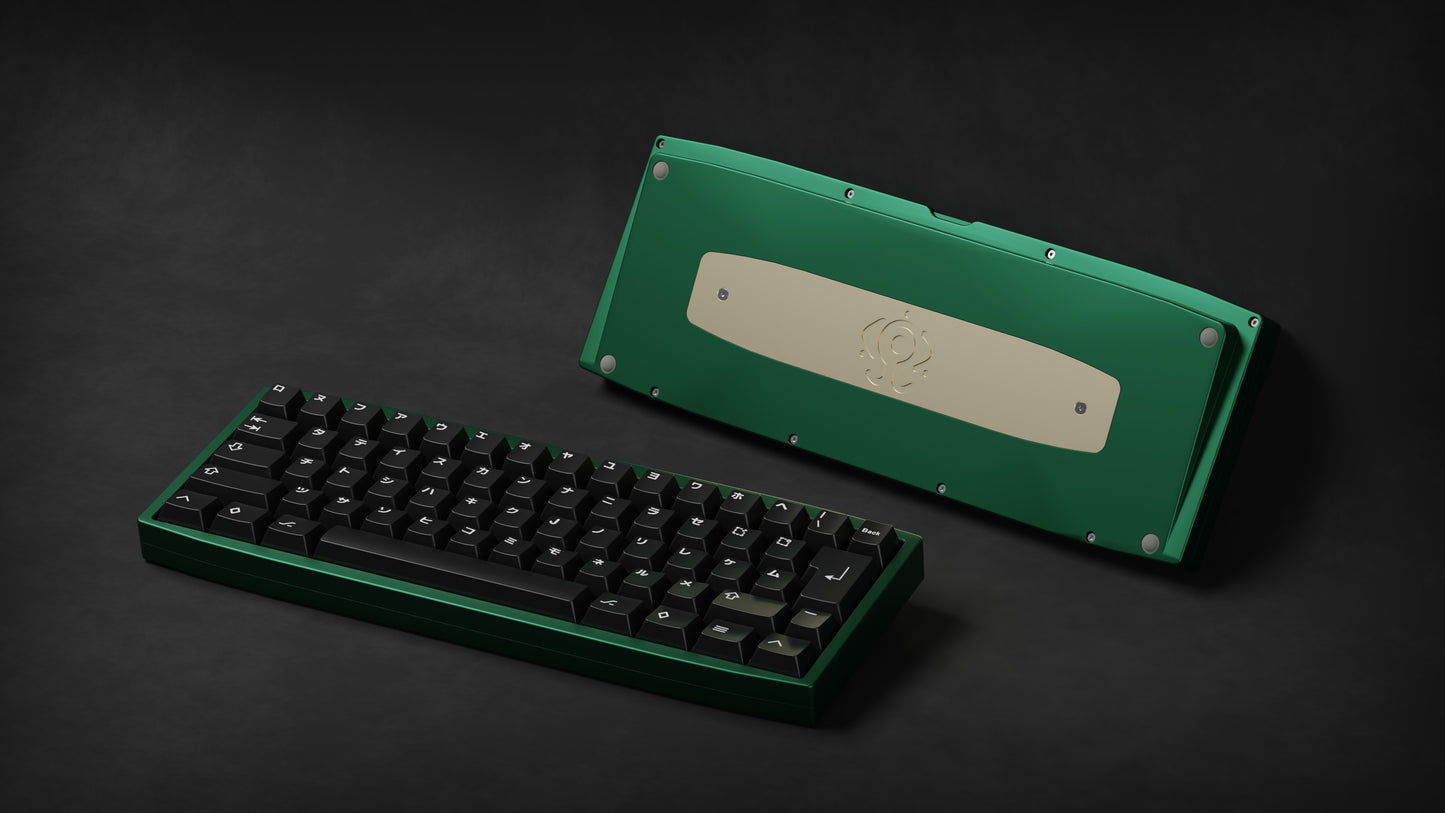

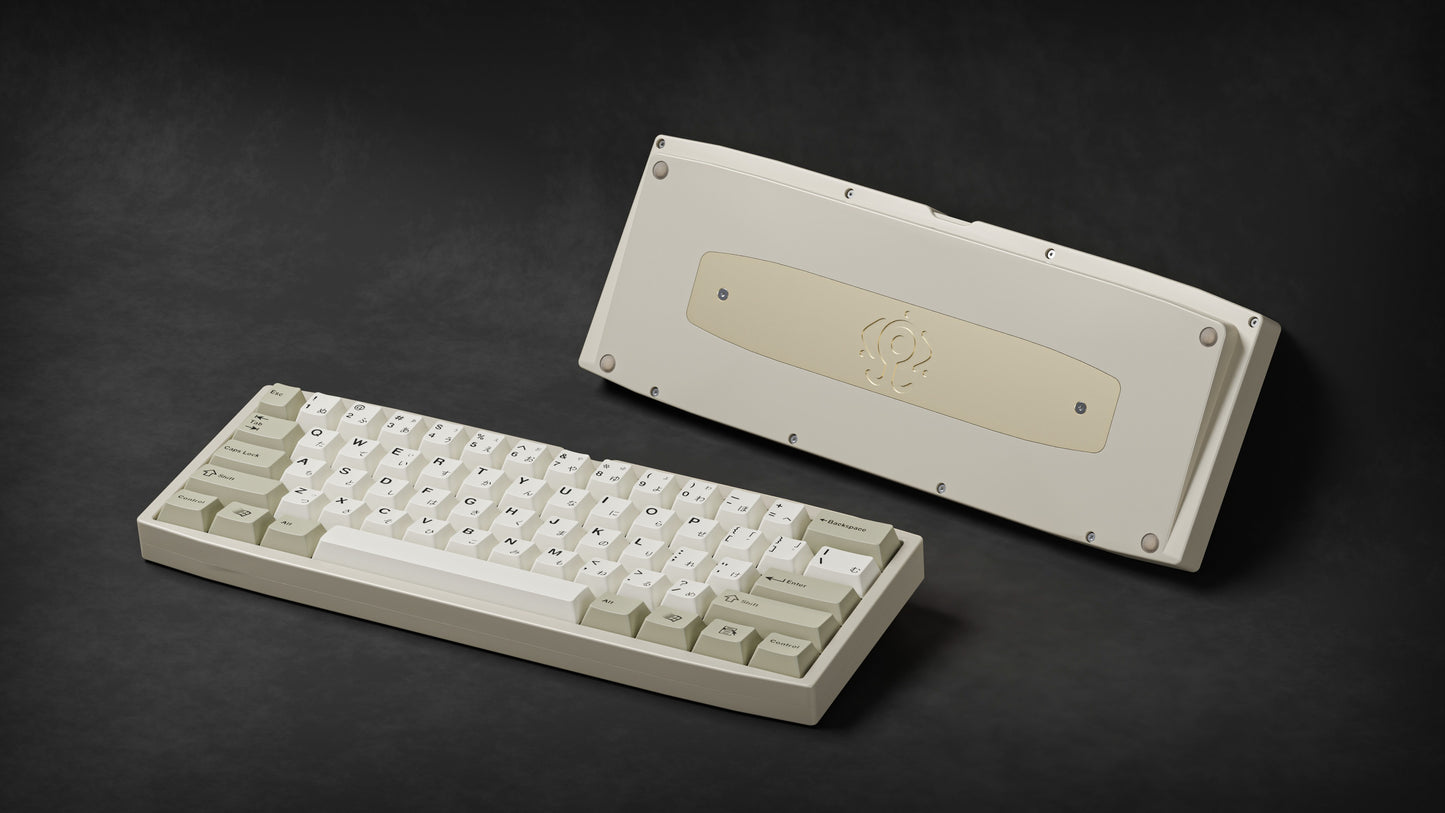

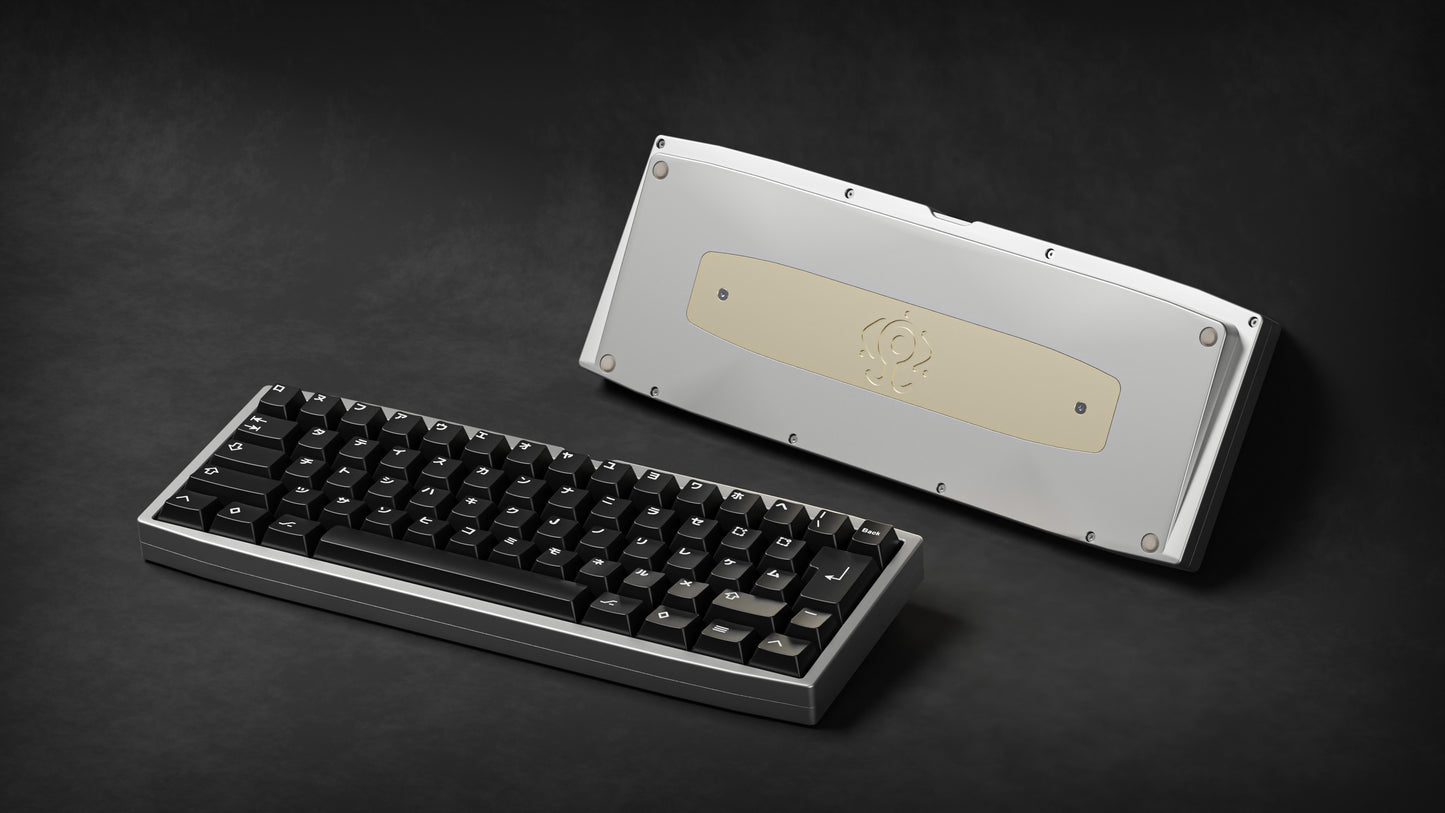

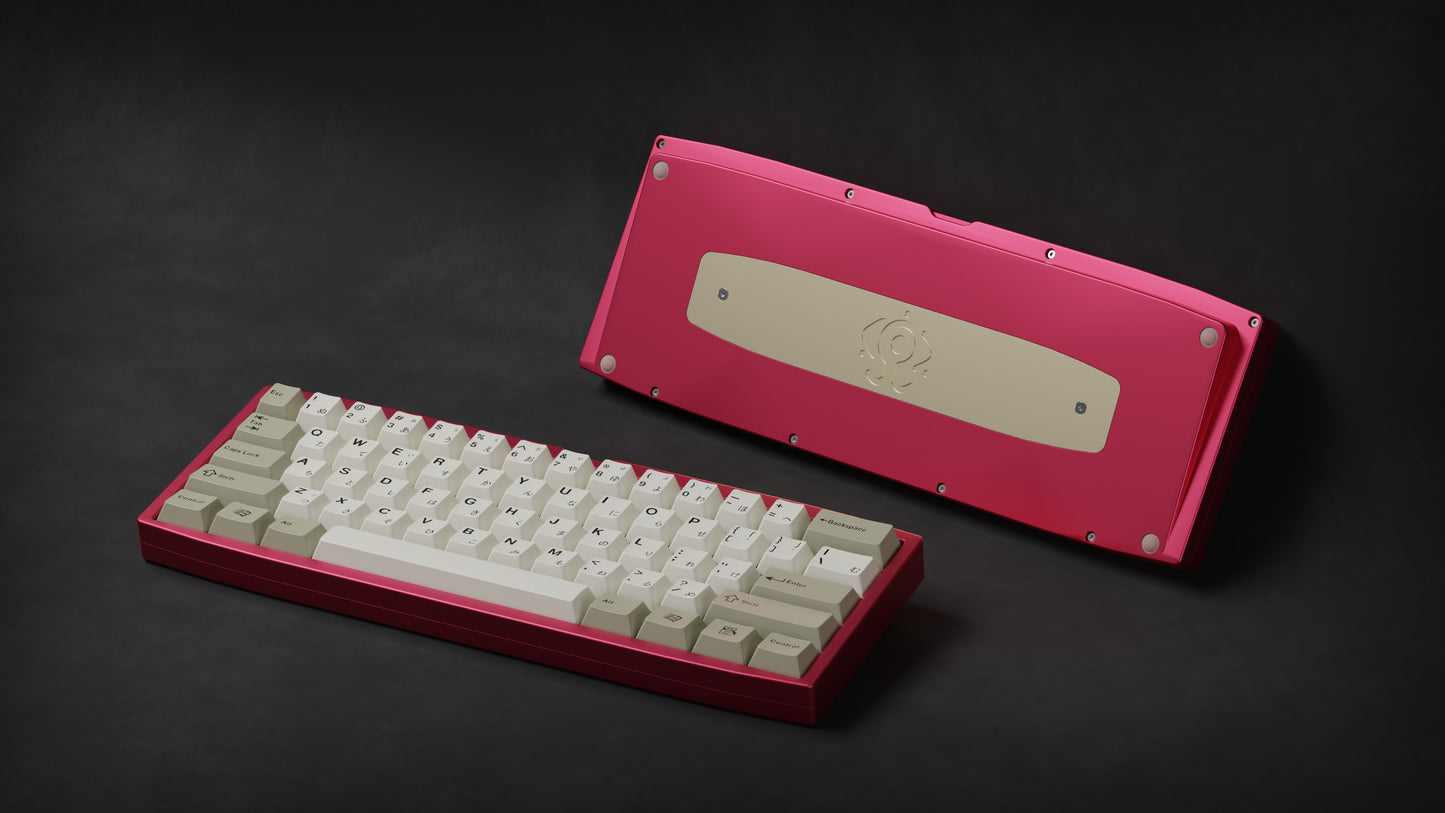

Its design is inspired by Abe’s original design of Lain’s personal Navi computer/keyboard. The kit comes with a two-piece case with a brass weight that is engraved with the Copland OS logo.

Specs:
7° typing angle

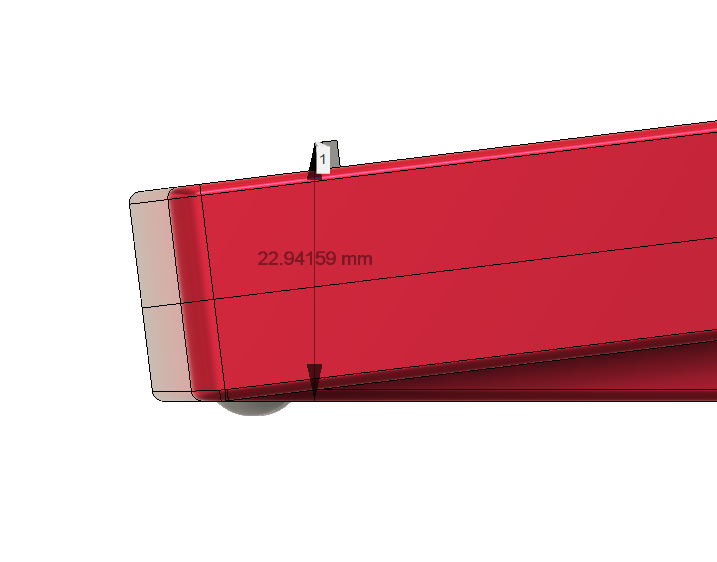

Effective Keyboard Height (EKH) = 22.94mm
Case weight (including Brass weight) = 914g
Case material: 6063 Aluminum w/ Brass Weight
Brass weight sandblasted + anti-fingerprint/anti-tarnish coating
Hardware Materials: 18-8 Stainless Steel (case screws/daughterboard screws)
Mounting support: Top mount/O-ring mount
Plate Material: FR4, Aluminum, POM
PCB Specifications: 1.6mm, QMK/VIA supported,
Unified Daughterboard includes ESD protection + fuse

Layout:
Hotswap
JIS support (Solder only)

Add-on:

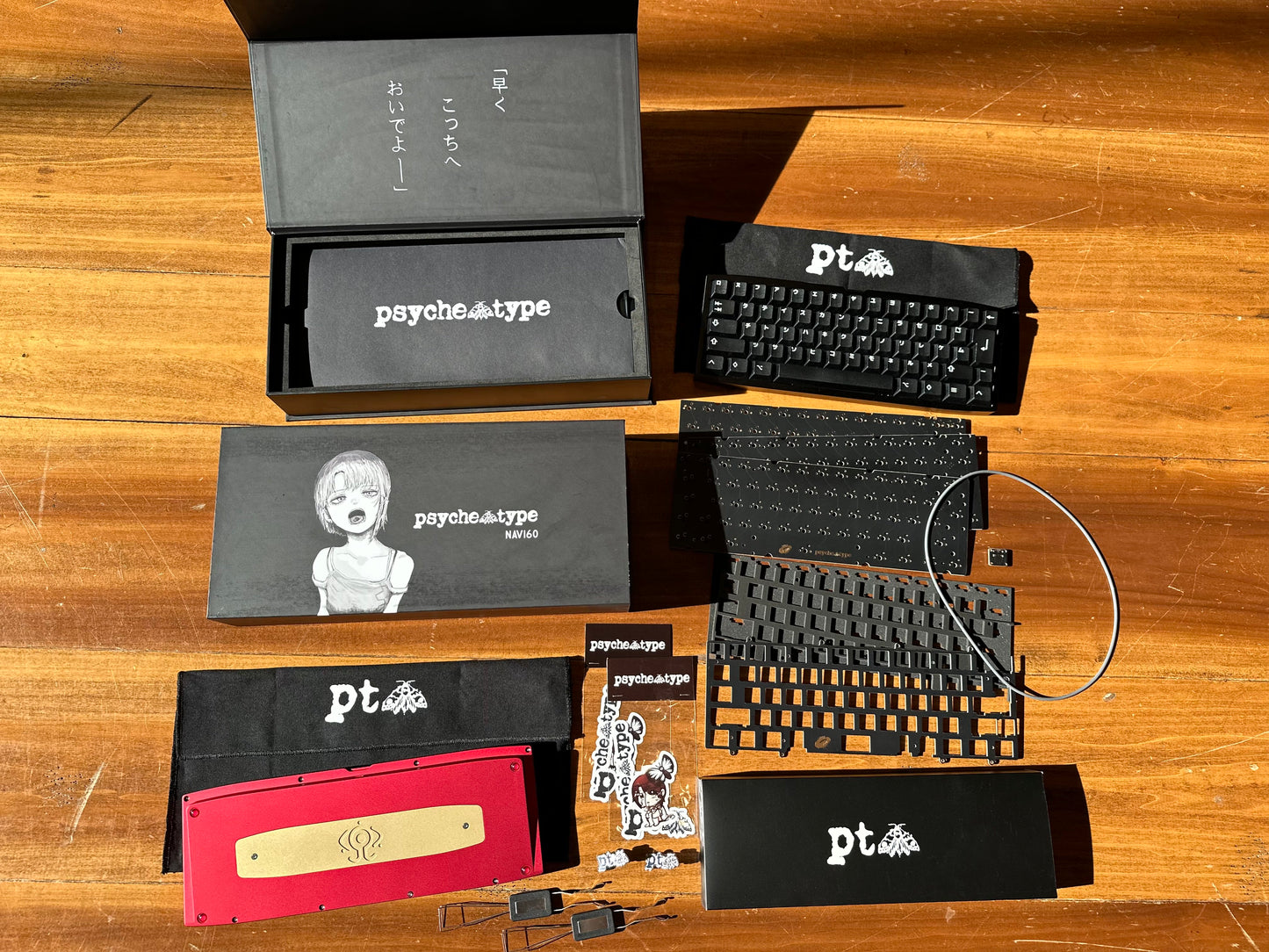

Kit Content:
Two-Piece CNC Aluminum case w/ Brass weight
PCB
Plate
Unified Daughterboard w/ JST Cable
Plate foam
USB-C cable
Medium size O-ring from Graveshift (40A stiffness)
Keycap/Switch puller
3M Rubber feet + Screws
2mm hex key + 1.5mm hex key
Durock v2 stabilizers (smokey black kit with 2 additional 3u wires)
psychetype pin
psychetype sticker pack (art from Orange of OranArt Studio)

Sound Test:
