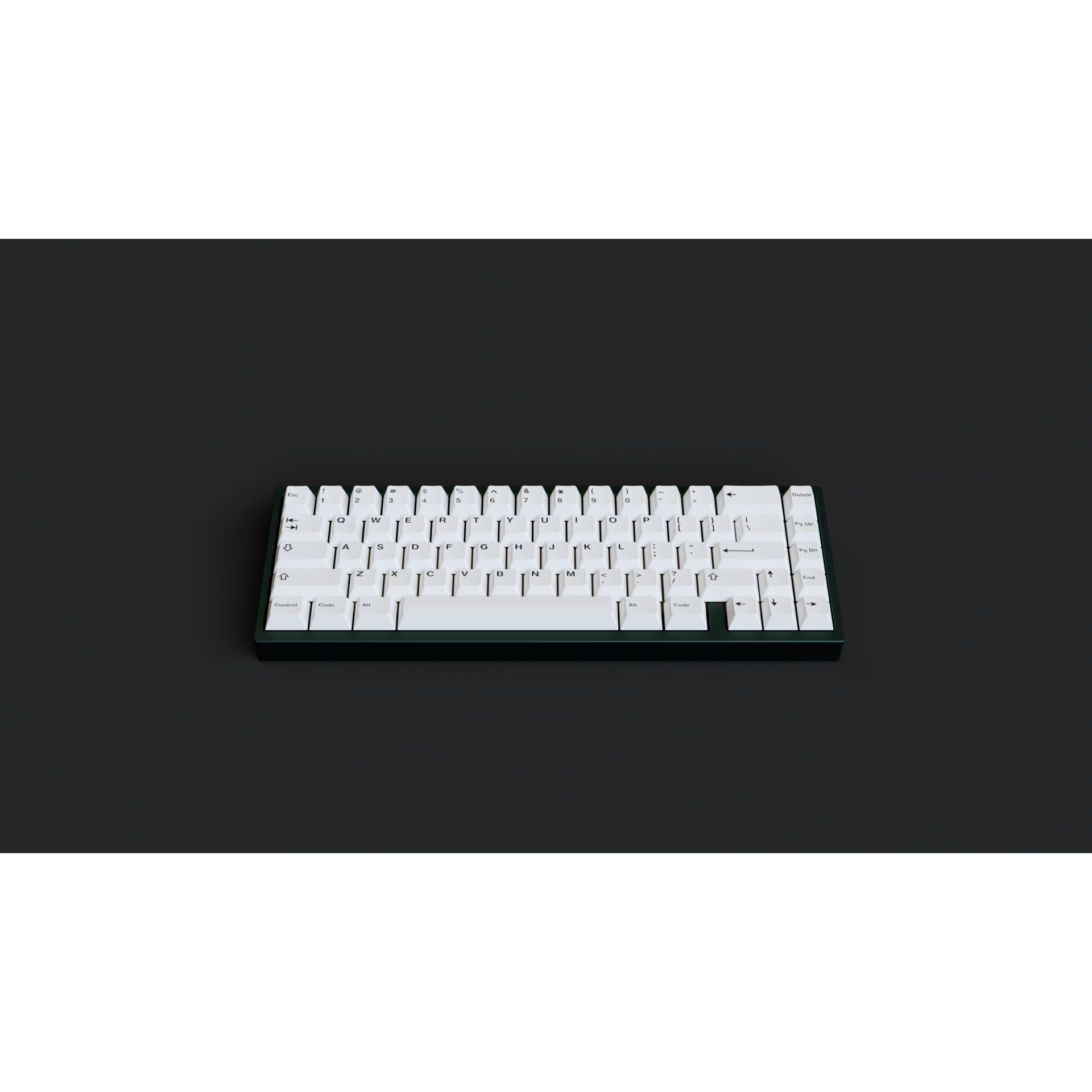

Ciel, an affordable O-Ring gasket mount board but with arrows this time!
Based on the kkatano’s open-source Bakeneko65, much of the original design has been retained. Changes have been made with respect to the internal/external weight and a slight change in the back profile.
Ciel supports 6.25u and 7u spacebars as well as split backspace and stepped caps lock. The blocker is a floating cut-out design and the board is gasket mounted with the provided 50a o-ring. The plates have been modified so screw-in stabs are fully compatible. Hotswap and solder PCBs are available, as well as extra plates and o-rings.
Colour options are mostly the same from the Ciel60. E-White has been dropped for Forest Green and Polycarb has been added at an additional cost.
Add-on plates and parts are available here.
6063 Aluminum case OR Polycarb

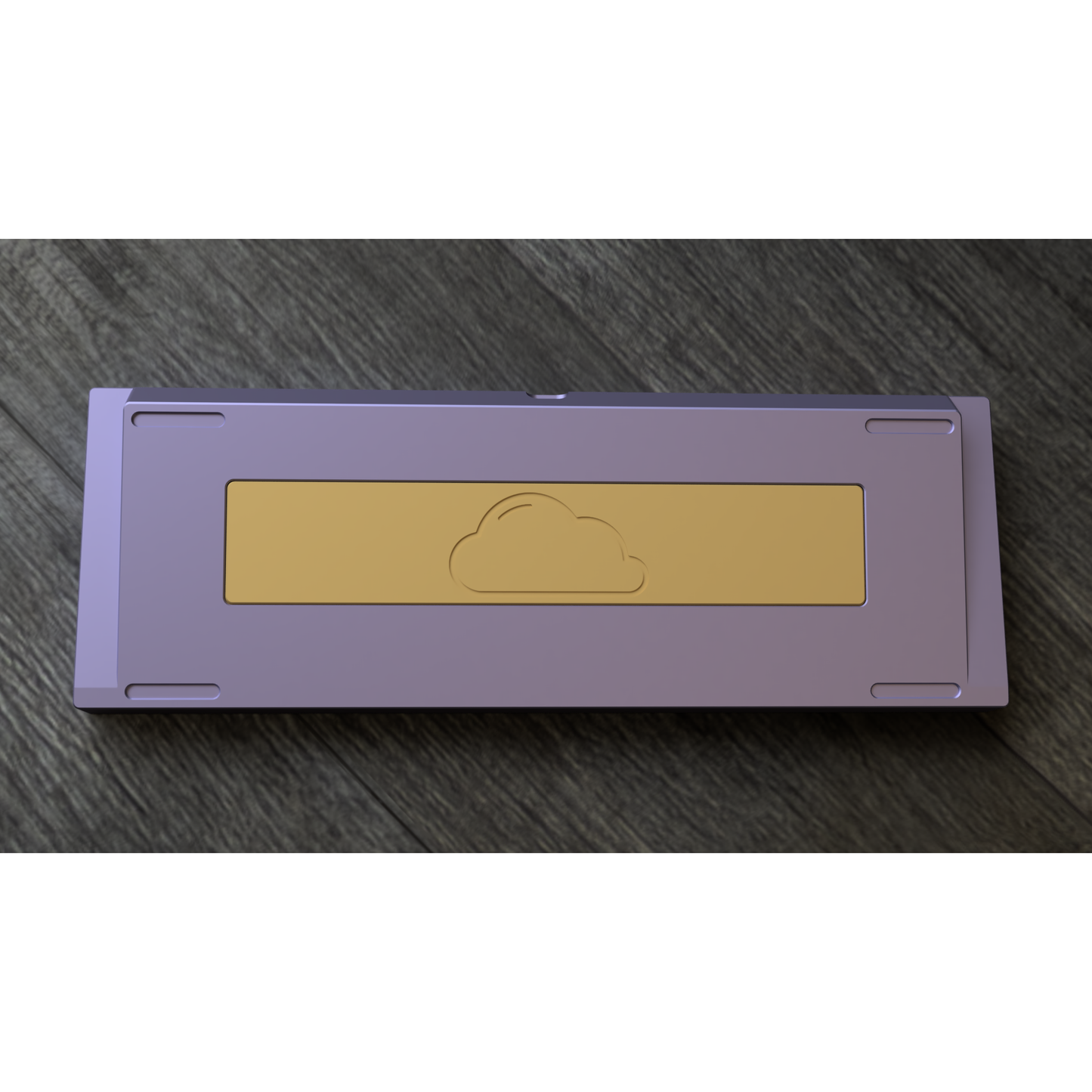

Internal/External Brass weight
5052 Aluminum plate (add-ons avail)
Hotswap PCB (Solder PCB available)
~1.1 kg unbuilt, 1.6kg built
Multi-Layout Hotswap PCB
50a 65% O-Ring
Custom Silicone Feet
All hardware required
