[Pre-Order] LuminKey80 - Barebone Kit

After the LuminKey75, LuminKey is back to bring us its successor, the LuminKey80. Same formula, the TKL inherits all the goodness and improves upon that. High quality, has great acoustic, and even comes with a pre-assembled option that is ready to use out of the box.



Latency data
Wired: 2 millisecond
2.4G: 6 millisecond
Wireless: 40 millisecond

Polling rate
Wired: 1000Hz
2.4G: 1000Hz
Wireless: 125Hz

Keyboard Spec
Size: 159x136x19mm
Typing Angle: 7°
Layout: 80% TKL ANSI/ISO
Mounting: Gasket Mount
Programming Support: QMK / VIA
Cable type: Type-C Data Cable
Switches: Createkeebs Sylva Linear Switches
Stabilizer: Gateron Stabilizers
Connectivity: Wireless/2.4G/Wired
Compatible System: Windows/MacOS
PCB: 1.6mm Hot-swap
Plate: 1.5mm PC Plate

Material
Case: 6063 CNC Aluminum

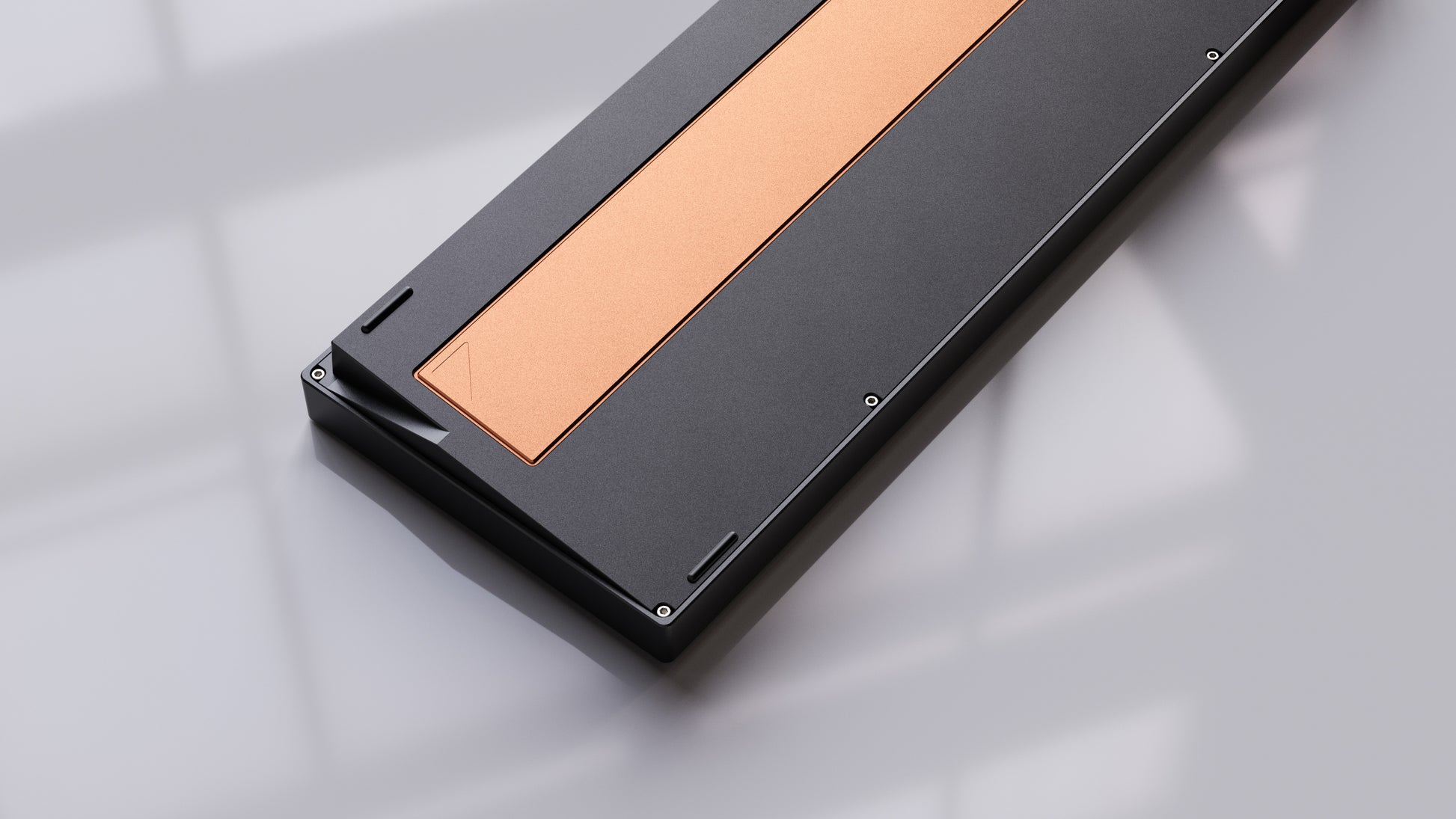

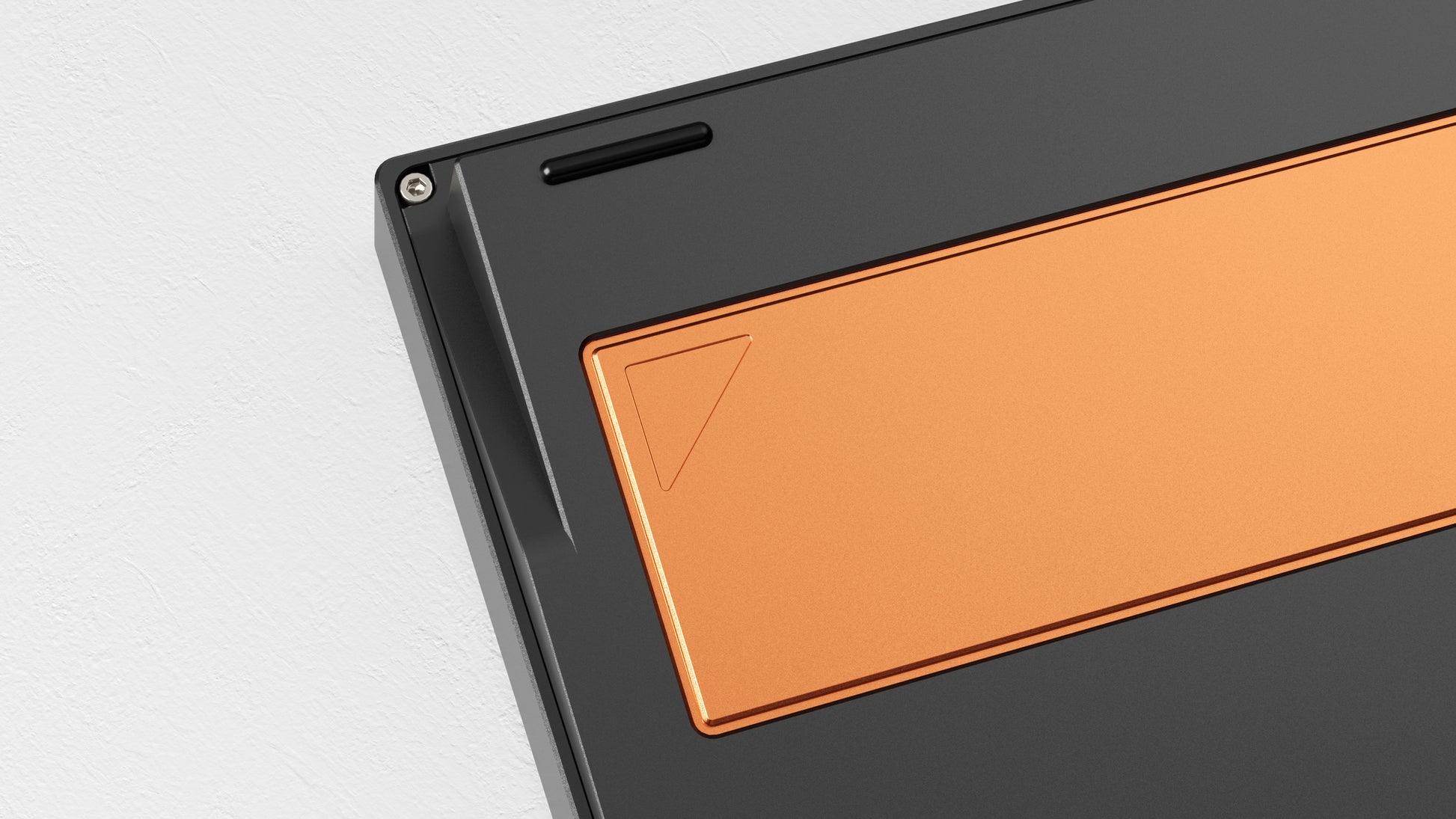

Weight: Copper
Badge: Copper

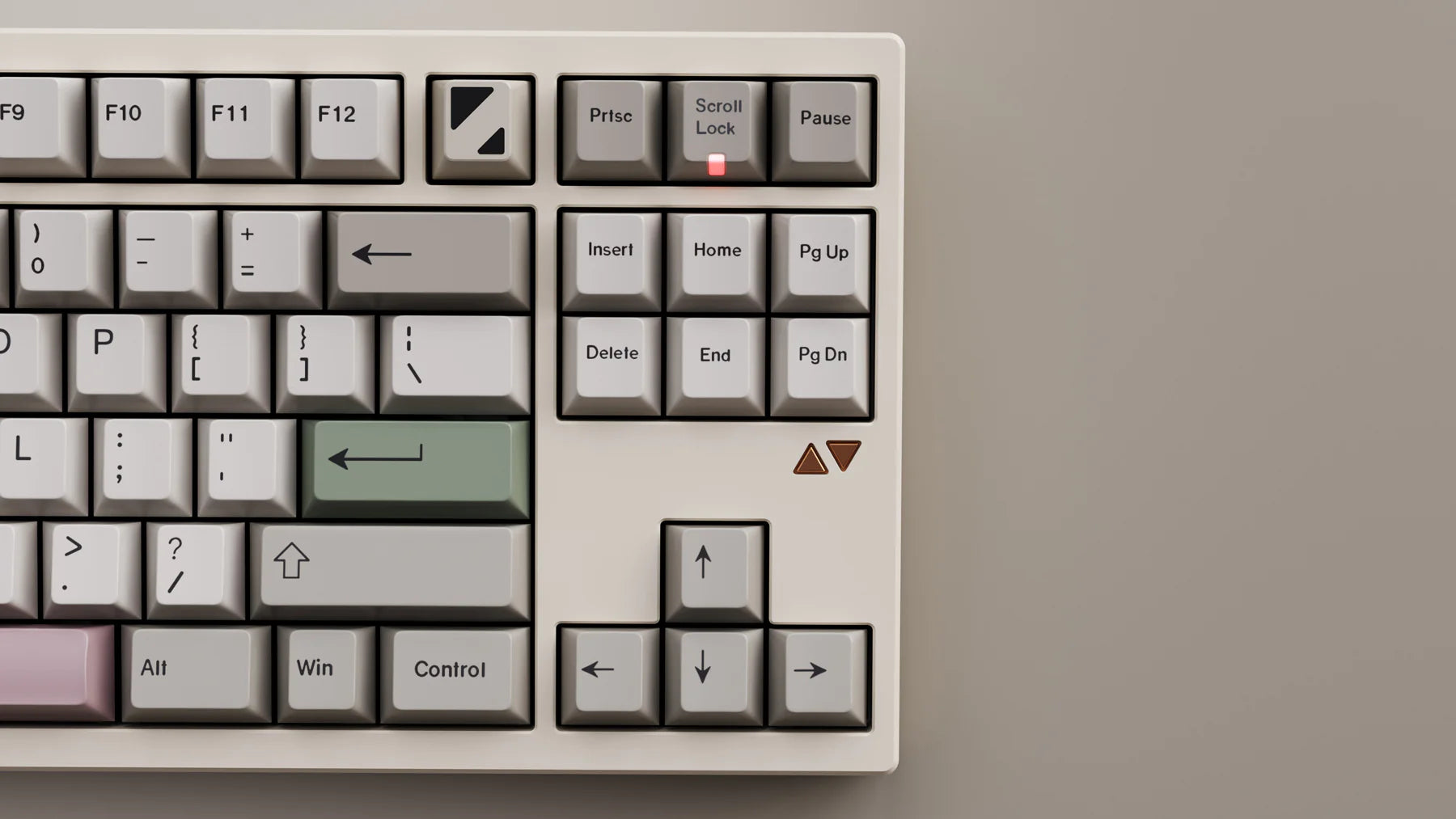

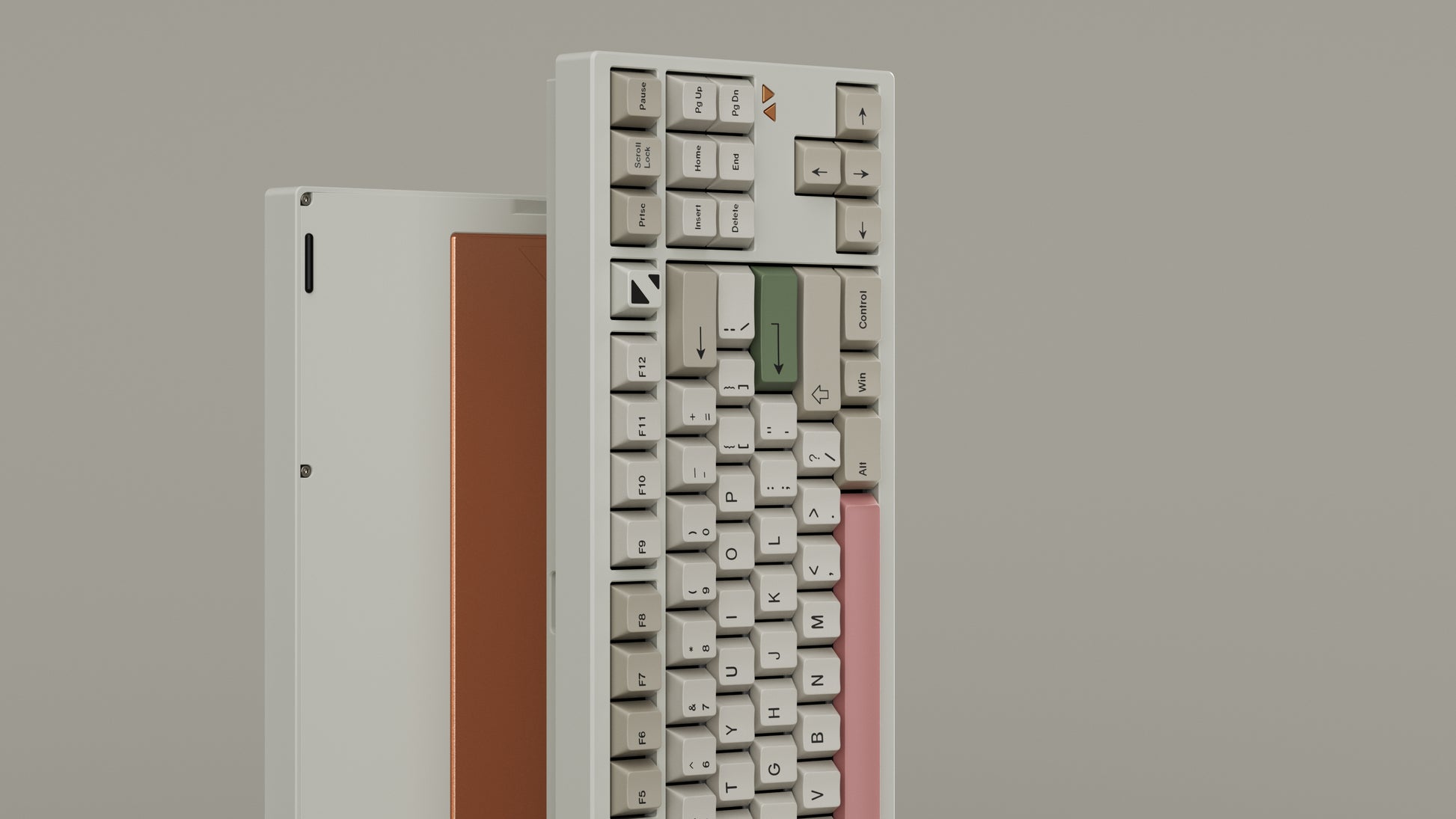

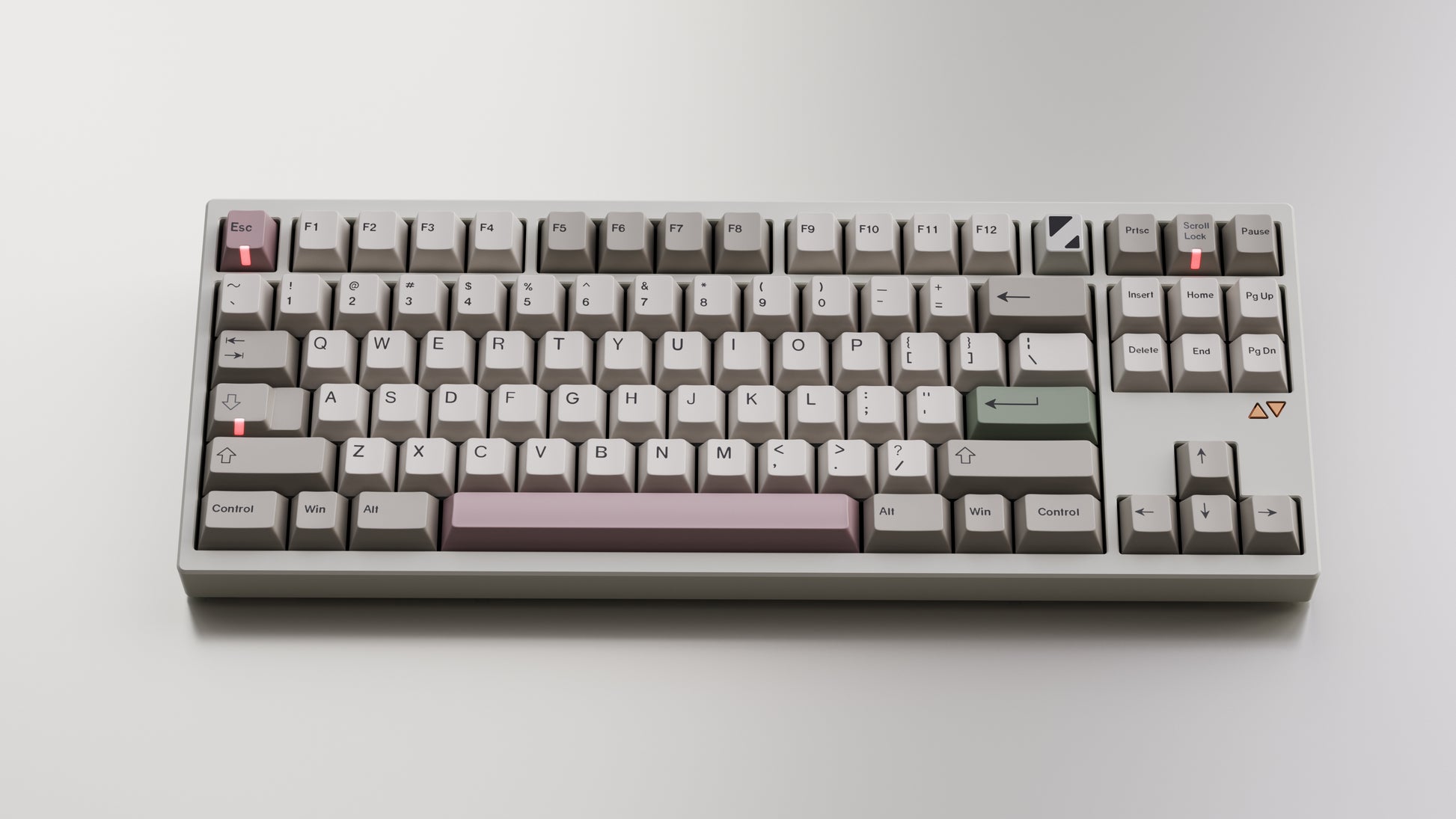

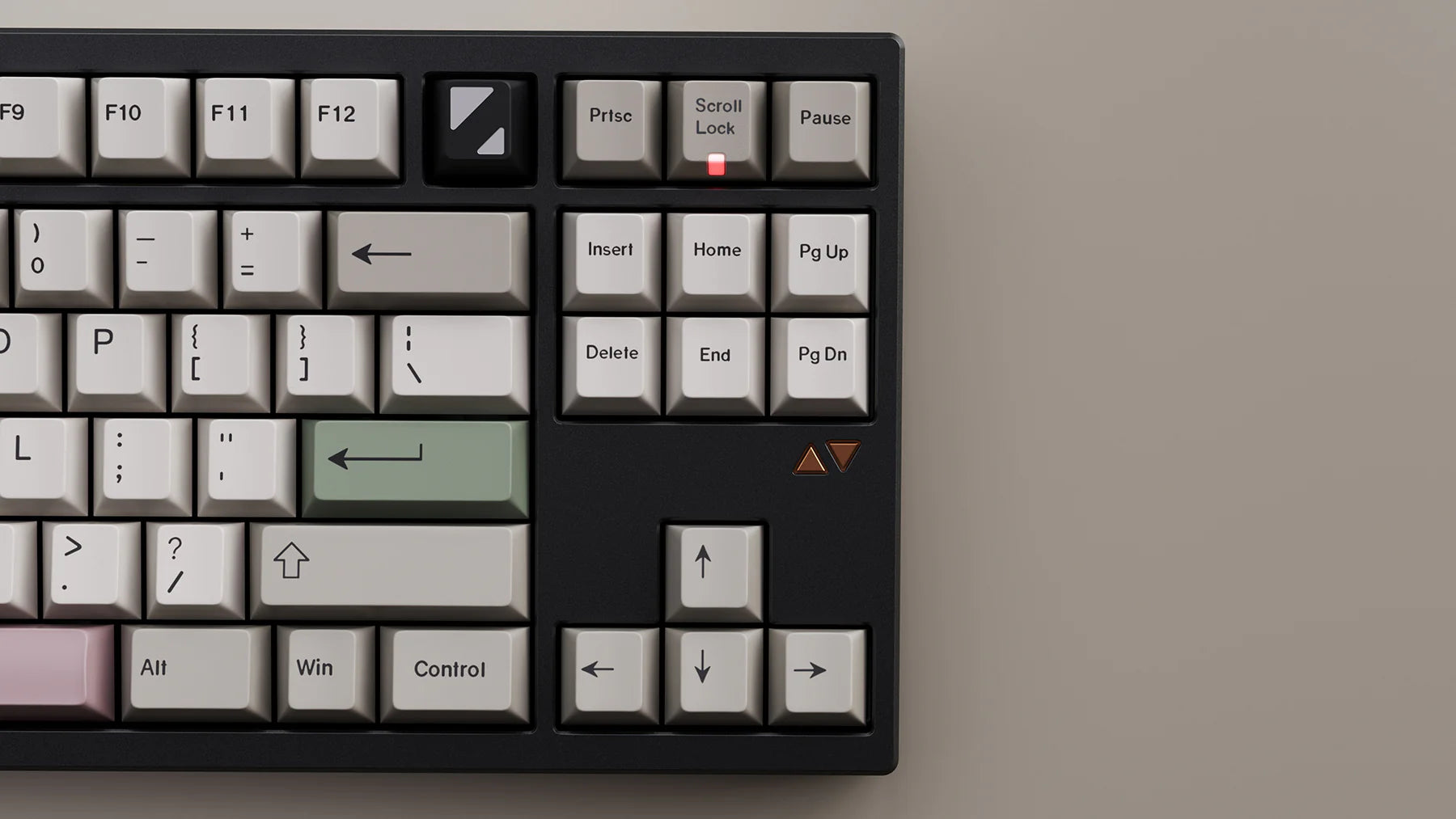

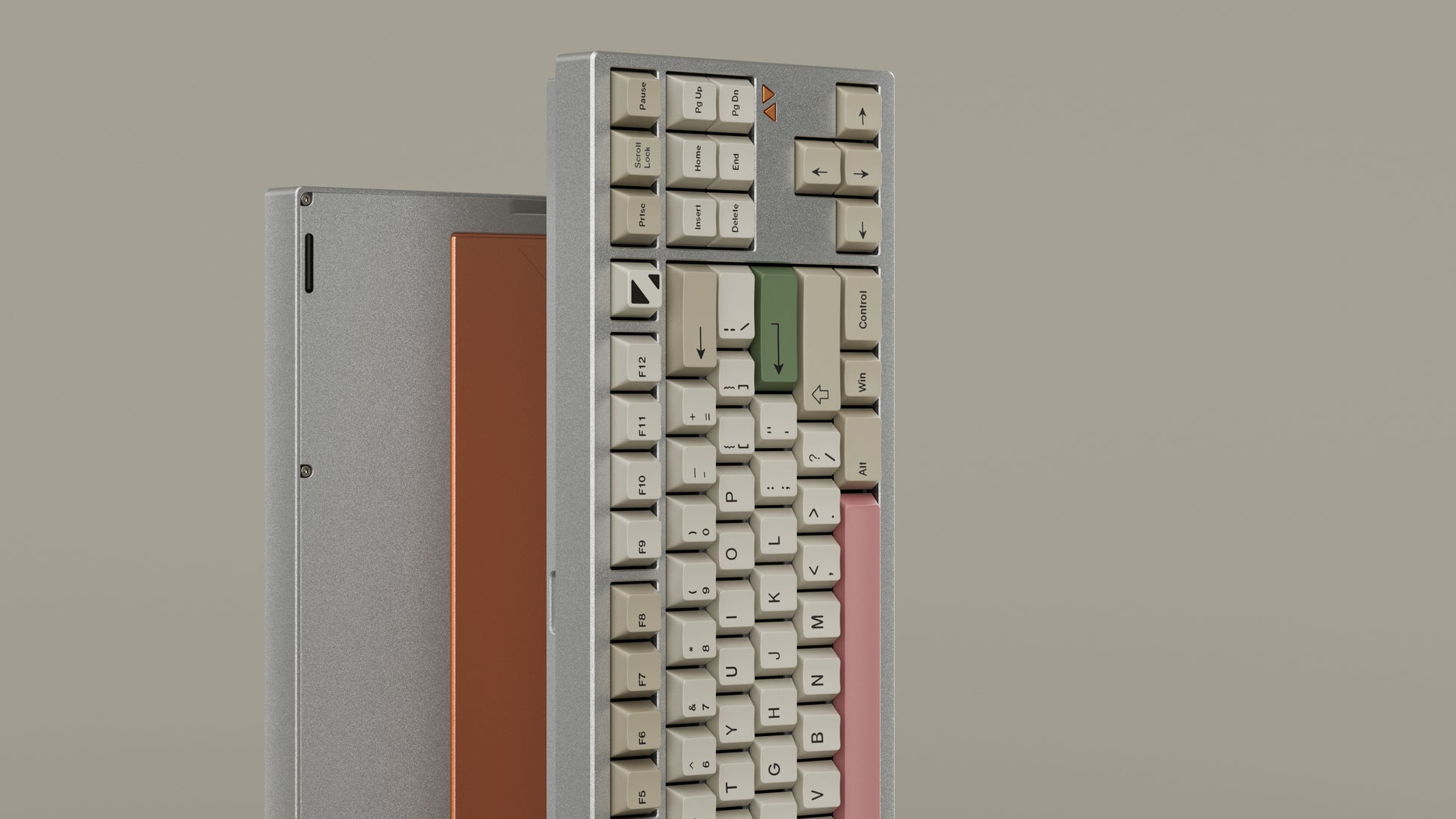

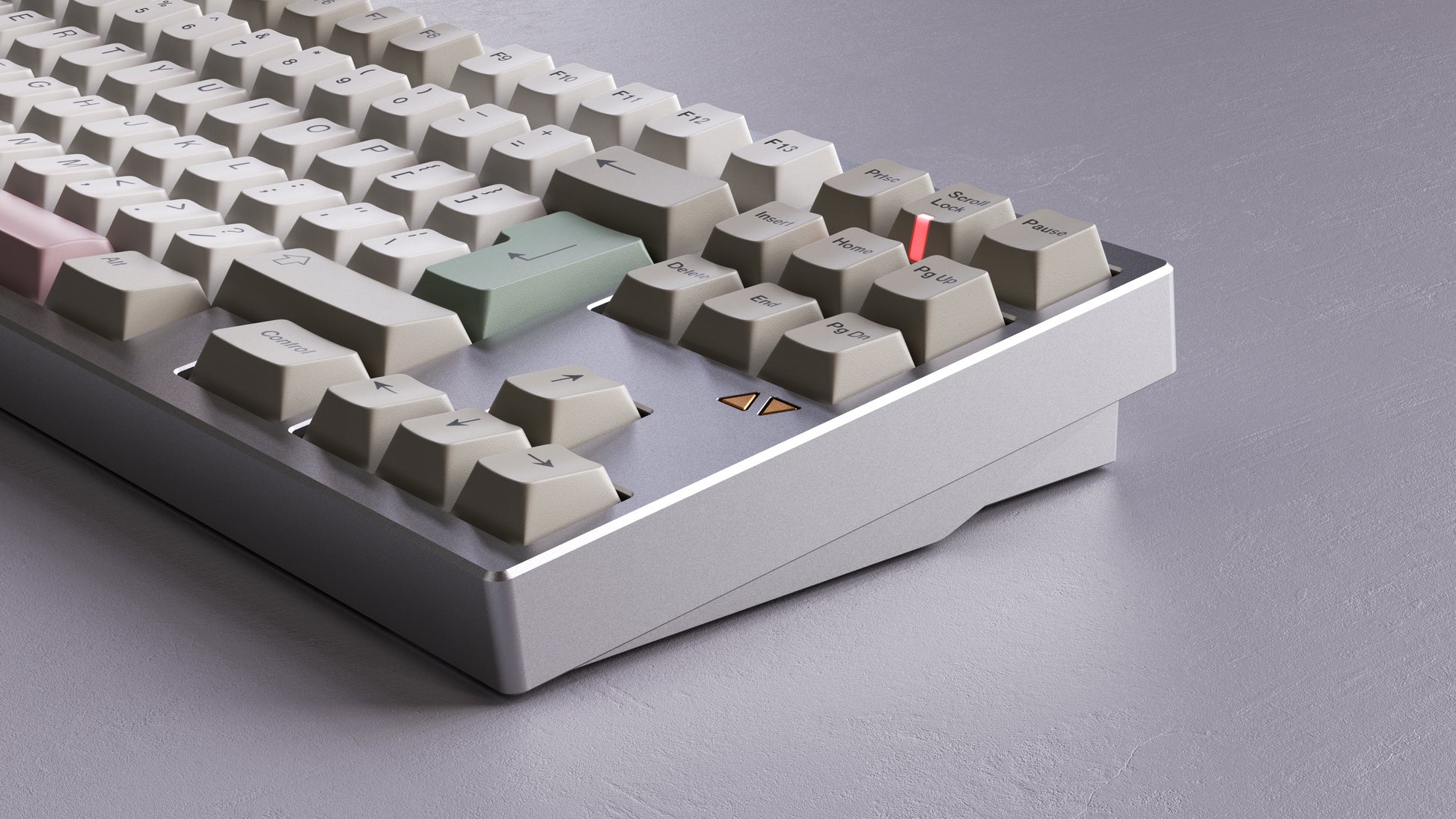

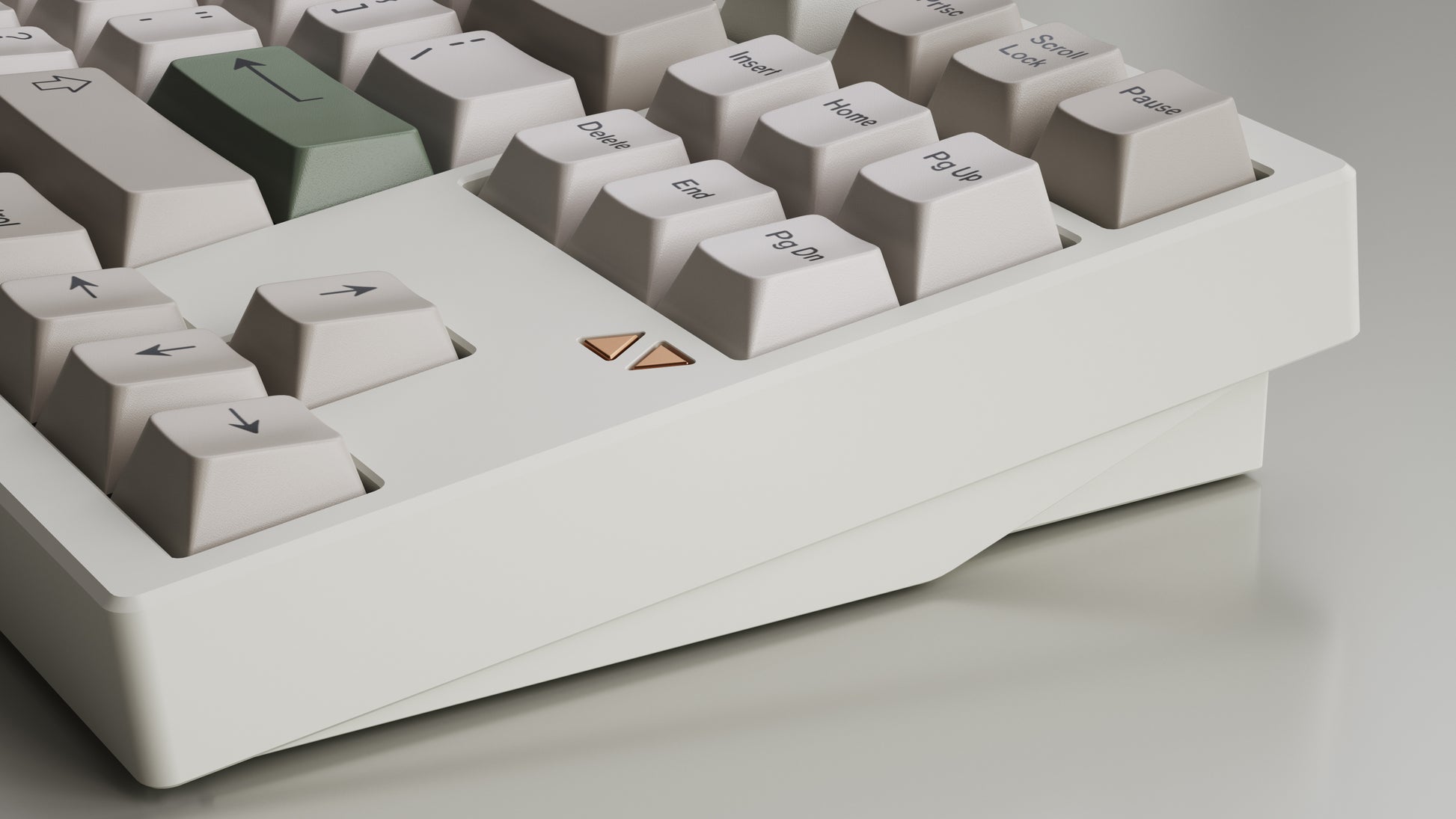

Color: Ano-Black/ Ano-Silver/ E-Retro White

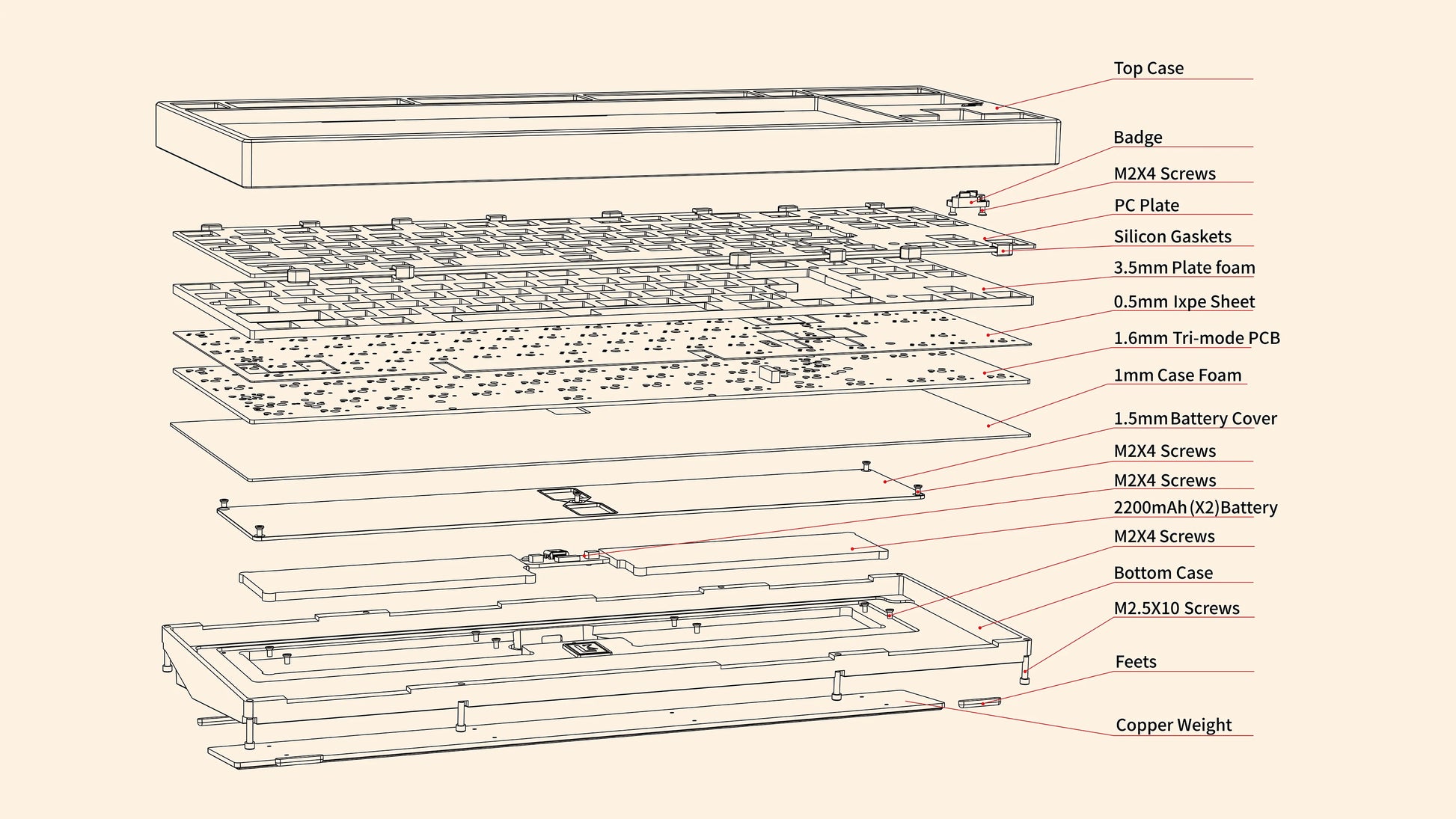

Top Case

Bottom case

Weight

PC Plate

Hotswap PCB, Daughter Board

Screws

Gasket socks

Foam (Switch foam, plate foam, ESD Protection case foam)

Set of Gateron stabs

Aluminum artisan keycap

Screwdriver

USB Cable

Switch and Keycap Puller



Australia: ALLCAPS

EU: KeyGem

ID: Mechaland

KR: Laein, Monstagears

ML: Mecha

PL: Zion Studio

SG: iLumkb, Ktechs, Pantheonkeys

TW: Inpad

TL: Nuntachot

UK: Keyboardco

US: Cannonkeys, Mechanicalkeyboard, KFA

VN: The Keeb Store







QMK/VIA files:

Here
